Conveyor Systems


Modular Belt Conveyors:

We specialise in modular belt conveyors for the beverage can and bottling industries which can be used for mass conveying of steel, aluminium, plastic and glass containers.

Modular belt conveyors are also highly effective in many other production applications and industries such as food processing, labeling, packaging and automotive.

Our conveyor systems can be manufactured from mild steel powder coated finish or stainless steel for the food industry, either straight running or side flexing with a variety of belt types suited to your product requirements.

Tight transfer methods can be implemented preventing dead/static containers and line contamination on product or label changes. Manufactured using industry standard tried and tested products and materials.

Slat Conveyors:

Slat conveyors are used widely in the beverage, container, food and automotive industry. In such applications as elevators, washers, accumulation tables, processing lines, blanchers and cookers and also heavy items such as car tyre handling and pack movement

Varying widths and lengths manufactured to suit your application using aluminium, mild or stainless steel in straight running or side flexing radius bends and sections.

Divider Conveyor Loading image. Please wait

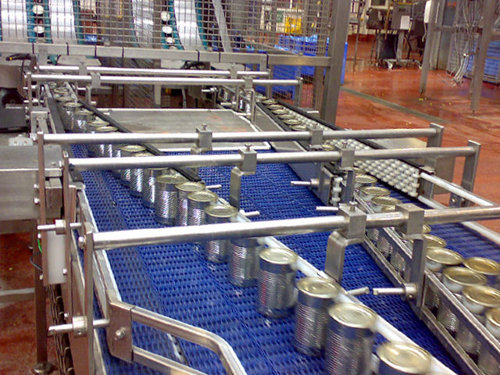

Divider Conveyor
Left Arrow
Right Arrow
Cable Drive Cable Ways Conveyor close-up Conveyor Close-up 1 Cross Conveyor 1 Cross Conveyor 2 Divider Conveyor Magnetic Elevator Magnetic Lowerator Overhead Magnetic Transfer PVC Conveyor Vacuum Overhead Transfer
Cable Drive
Cable Way
Conveyor Close-up
Conveyor Close-up 1
Cross Conveyor 1
Cross Conveyor 2
Divider Conveyor
Magnetic Elevator
Magnetic Lowerator
Overhead Magnetic Transfer
PVC Conveyor
Vacuum Overhead Transfer


PVC Belt Conveyors:

PVC belt conveyors are used for assembly and packing lines where product hygiene is extremely important and are widely used in the pharmaceutical industries manufactured in aluminium, mild or stainless steels.

Straights, inclines and bends are available and high temperatures and high speeds can be achieved.

The use of magnets can be used below the moving belt to make ferrous products such as container ends adhere to the belt, allowing incline and decline with consistent product spacing.

Can Cable Ways

Cable conveyors are usually simple, often using a small diameter nylon coated, mild steel or stainless steel cable to carry the product.

The conveyor frame consists of an angle, box section or unistrut design with bearing wheeled cable return wheels. The cable runs on a nylon profiled wear strip and incorporates either fixed or size adjustable guide rails. Corner wheel units are used to change the direction and incline or decline the cans.

Elevators and Lowerator’s:

The ability to gently move products from one level to another is a common requirement of production lines. We have the technical knowledge to produce the right solution whatever your requirement.

We can offer side grip style, magnetic for use on ferrous metals, vacuum and flighted belt style elevators and lowerators to provide the most cost effective solution for dealing with elevation changes.

All manufactured and designed using a wide range of materials including, mild or stainless steels, aluminium’s and plastics with a variety of finishes and specifications. We integrate industry standard belts, motors, bearings and components.
